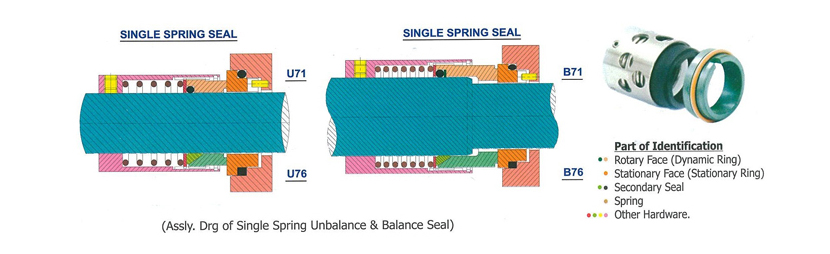

Single Spring Balance Unbalance Seal

Series : U71 & U76 / B71 & B76

• We manufacture, supply and export the finest quality of single coil spring seals, for various industrial applications. The single coil spring seals are used mainly in dirty and congealing application. The seals are highly demanded for the anti abrasive applications.
• We have designed the U71 and U76 series and B71 and B76 series of seals.

Special features

• Abrasion resistant
• Easy to install
• Balanced or unbalanced
• Located inside
• The application
• Agriculture industry
• Commercial application
• Waste water and sewage.

Globe Star Standard Style

• Face Materials : (Dynamic Ring & Stationary Ring ) Carbon, Ceramic (99.5%). Silicon Carbide, Tungsten Carbide, Chrome Cast Steel & Which Are Suitable For Fluid.
• Secondary Seal : U71 & B71 : Viton, EPDM, Silicon, Aflas, EPR, Kalrez, TCV. U76 & B76 : GFT, PTFE, FEP, Grafoil.
• Hardware : SS 316, SS 304, Hast - C, Monel, Alloy -20.

Application

• Light Hydrocarbon, Dirty, Media.
• Petrochemicals
• Petroleum Refinery
• General Chemicals

Operating Limits

• Shaft Diameter : (12 mm to 100 mm) (0.5" to 4.0")
• Pressure : Unbalance 10 Bar (kg/cm 2) & Balance upto 35 bar (kg/cm 2)
• Temperature : -60째c to 260째c
• Shaft Speed : Upto 6000 RPM According to Shaft Size & Pressure.

Seal Characteristics

• Inside Mounted
• Single Acting
• Unbalanced & Balanced
• Independent Of Direction Of Rotation

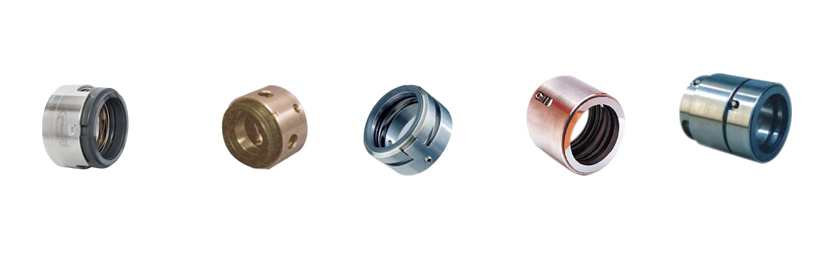

Other Available Single Spring Seal
