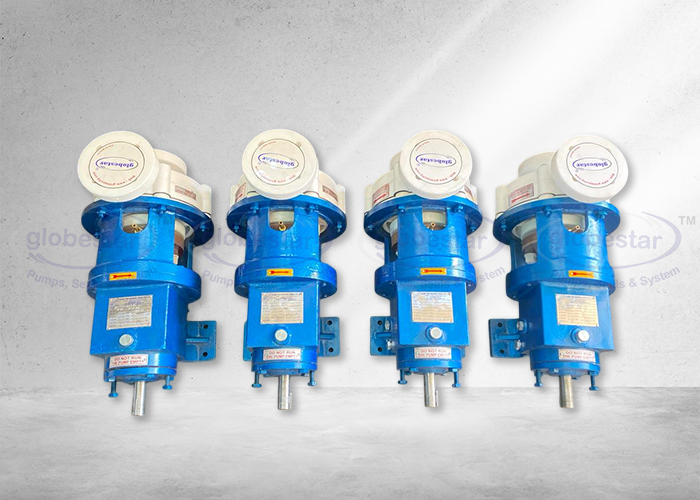

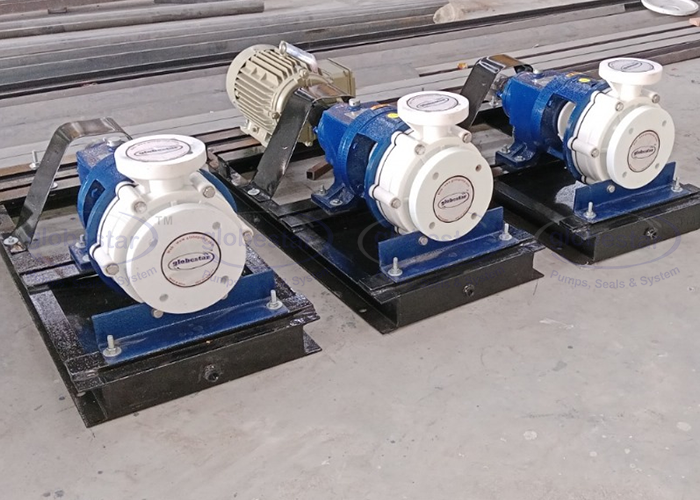

PP Centrifugal Pump
PP centrifugal pumps, also known as polypropylene pumps, are commonly utilized in applications where metal is not an option, such as with severely corrosive compounds.
Since 2002
Quality Product
Support 24x7
Unlock Materials, Applications & Features
| Technical Details | |||||||
|---|---|---|---|---|---|---|---|
| Head | Flow | Temperature | Material | Speed | Type | ||
| Up to 60Mtr. | Up to 50 m3 /hr | Up to 120°C | PP, PVDF, UHMWPE | 2880 RPM / 1440 RPM | Mechanical Seal / Gland Type | ||
| Material Construction | |||||||
|---|---|---|---|---|---|---|---|
| Casing | Impeller | Back Plate | Sleeve | Shaft | Bearing Housing | ||
| PP, PVDF, UHMWPE | PP, PVDF, UHMWPE | PP, PVDF, UHMWPE | Ceramic, SS | EN-8 , SS 410 , SS 304 , SS 316 | C.I | ||
| Features | Applications |
|---|---|
| Design suitable to chemical and acid application | Corrosive liquid handling |
| Oil and grease lubricated bearing | Chemical & gas washing & scrubbing plants |
| Heavy duty shaft | Pharmaceuticals Industries |
| Easy maintenance | Dyes and pigment industries |
| Dynamically and hydraulically balanced semi open impeller | Fertilizer plants |
| High efficiency and low NPSH performance | Water & effulent treatment plant |
| Self venting type casing | HCL and H2So4 acid handling |
PERFORMANCE CHART - GHE - SERIES
| MODEL | HEAD (Mtr.) | IMPELLER | RPM | HP | Suc.X. Disch. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| CAPACITY FLOW (M3/hr) | ||||||||||
| GHE-100 | 7 | 8 | 10 | 11 | 12 | 13 | 100 | 2880 | 1 | 25X25 |
| 11 | 9 | 6 | 5 | 3 | 0 | |||||
| GHE-120 | 10 | 12 | 15 | 16 | 18 | 0 | 120 | 2880 | 2 | 40X32 |
| 24 | 20 | 12 | 8 | 00 | 0 | |||||
| GHE-130 | 8 | 12 | 15 | 18 | 20 | 23 | 130 | 2880 | 3 | 50X40 |
| 30 | 24 | 18 | 12 | 8 | 0 | |||||
| GHE-160R | 10 | 15 | 18 | 20 | 22 | 24 | 150 | 2880 | 3 | 40X40 |
| 26 | 20 | 10 | 5 | 3 | 0 | |||||
| GHE-160 | 10 | 15 | 20 | 25 | 26 | 31 | 160 | 2880 | 5 | 75X40 |
| 35 | 30 | 25 | 15 | 12 | 0 | |||||
| GHE-170 | 12 | 20 | 25 | 25 | 30 | 35 | 160 | 2880 | 7.5 | 75X50 |
| 50 | 38 | 32 | 25 | 15 | 0 | |||||
| GHE-40 | 25 | 30 | 35 | 40 | 45 | 49 | 190 | 2880 | 12.5 | 50X40 |
| 45 | 42 | 25 | 15 | 4 | 0 | |||||
| GHE-50R | 5 | 8 | 10 | 11 | 12 | 195 | 1440 | 2 | 40X40 | |
| 25 | 12 | 6 | 2 | 0 | ||||||
| GHE-50 | 60 | 8 | 10 | 12 | 13 | 15 | 205 | 1440 | 3 | 40X40 |
| 40 | 30 | 23 | 15 | 10 | 0 | |||||
| GHE-55 | 10 | 12 | 14 | 15 | 17 | 18 | 205 | 1440 | 5 | 75X50 |
| 37 | 28 | 20 | 10 | 6 | 0 | |||||
PERFORMANCE CHART - GXP - SERIES
| MODEL | CAPACITY FLOW (m3/hr) | IMPELLER | RPM | HP | Suc.X. Disch. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| HEAD(mtr.) | ||||||||||
| GXP-50H | 60 | 52 | 45 | 35 | 20 | 00 | 210 | 2900 | 15 | 50X50 |
| 45 | 50 | 55 | 58 | 60 | 60 | |||||
| GXP-50L | 50 | 44 | 34 | 23 | 14 | 00 | 220 | 1440 | 5 | 50X50 |
| 04 | 06 | 10 | 13 | 15 | 15 | |||||
| GXP-75H | 108 | 93 | 78 | 58 | 24 | 00 | 185 | 2900 | 20 | 75X50 |
| 30 | 35 | 40 | 43 | 45 | 45 | |||||
| GXP-75L | 65 | 56 | 52 | 42 | 30 | 00 | 192 | 1440 | 5 | 75X50 |
| 03 | 05 | 07 | 09 | 11 | 11 | |||||
| GXP-100 | 170 | 162 | 150 | 120 | 100 | 00 | 265 | 1440 | 20 | 100X75 |
| 14 | 16 | 18 | 20 | 22 | 22 | |||||
| GXP-100R | 115 | 105 | 88 | 75 | 50 | 00 | 255 | 1440 | 12.5 | 100X75 |
| 14 | 16 | 19 | 21 | 23 | 24 | |||||
| GXP-150 | 295 | 285 | 270 | 250 | 200 | 00 | 320 | 1440 | 50 | 150X100 |
| 25 | 27 | 29 | 30 | 32 | 34 | |||||
| GXP-150R | 300 | 230 | 200 | 185 | 150 | 00 | 300 | 1440 | 40 | 150X100 |
| 22 | 25 | 28 | 30 | 32 | 34 | |||||
PERFORMANCE CHART - GMPP - SERIES
| MODEL | HEAD(mtr.) | IMPELLER | RPM | HP | Suc.X. Disch. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| CAPACITY FLOW (m3/hr) | ||||||||||
| GMPP-0.5 | 03 | 05 | 08 | 10 | 11 | 100 | 2880 | 0.5 | 25x25 | |
| 10 | 08 | 04 | 02 | 00 | ||||||
| GMPP-1 | 07 | 08 | 10 | 11 | 12 | 13 | 100 | 2880 | 1 | 25X25 |
| 11 | 09 | 06 | 05 | 03 | 00 | |||||
| GMPP-2 | 10 | 12 | 15 | 16 | 18 | 00 | 120 | 2880 | 2 | 40x32 |
| 24 | 20 | 12 | 08 | 00 | 00 | |||||
Get Corrosion Resistant PP Centrifugal Pumps
Polypropylene is noted for its flexibility and durability, as well as its great chemical resistance to a wide range of acids. PP pumps have important benefits such as being affordable, compact in size, easy to maintain, and giving superior leakage and damage resistance.
Globe Star Engineers (India) Pvt. Ltd. is a well-known manufacturer and supplier of centrifugal PP pumps.
PP pumps are well-known for their corrosion resistance and high-quality finish. We have a state-of-the-art production plant, where our professionals manufacture a wide range of PP Centrifugal Pumps using high-grade raw materials, modern technology, and machines. As leading PP Centrifugal Pump Manufacturers in India, we offer PP Pumps in capacities rang
Our PP Centrifugal Pumps Are 100% Leak Proof
Our "GHE SERIES" centrifugal polypropylene pump is widely used for dyes and intermediates, pigments, corrosive acid, and gas scrubbing like Nh3, Co2, So2, HF, Br2, as well as acid pickling and corrosive chemical and gas washing plants, and so on.
Extremely robust and lasting corrosion-resistant Polypropylene centrifugal pumps can withstand extremely corrosive liquids such as acids, caustic chemicals, and solvents.
The machine’s sturdy construction allows it to be utilized for intermittent and continuous flow of fluid applications.Our organization specializes as one of the major PP Centrifugal Pump Suppliers in India. All of our PP Pumps are tested to high-quality standards to provide a wide variety of applications. Our diverse selection of industrial PP pumps includes PP Single Stage Centrifugal Polypropylene Pumps, working head upto 50 mtr Chemical Polypropylene Pumps that fulfill all of your chemical process handling requirements.
