Globe Star Standard Style
- Rubber Bellow Seals - manufacturer and supplier of Rubber Bellow Seals offered by globeseal.com. We provides quality Rubber Bellow Seals at best prices.
- Being popular as one of the leading manufacturer, supplier and exporter of the highest quality of the rubber bellow seal, we offer the seal with high mechanical strength.

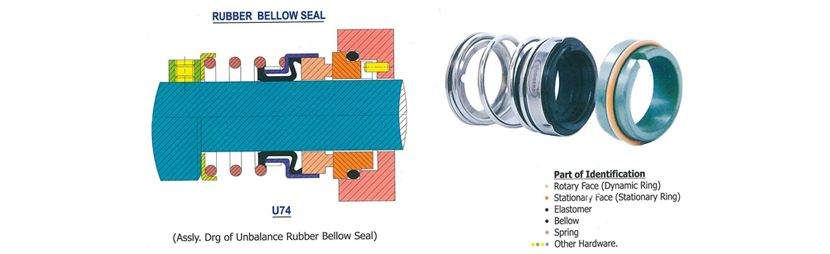

Series : U74
The globe star engineers (india), Gujarat, India manufacture, supply and export the rubber bellow seals for the water and oil. It is specially designed to protect the shaft. We offer the U74 series of the rubber bellow seals. The seals are rotating to bellows. The rubber bellow seals can be customized as per client’s specification and requirement.
The rubber bellows seals are used in water pumps, submersible pumps and sewage pumps.
- Easy installation
- Easy to remove
- Sturdy construction
- Low maintenance
- Long-lasting
Globe Star Standard Style
- Face Materials : (Dynamic Ring & Stationary Ring ) Carbon, Ceramic (99.5%). Silicon Carbide, Tungsten Carbide, Chrome Cast Steel & Which Are Suitable For Fluid.
- Elastomer : (Secondary Seal) Viton, Nitrile, Neoprine , Aflas, Silicon, As Per Application.
- Hardware : SS 316, SS 304, Hast-C, Monel, Alloy-20
Application
- Water Pumps
- Submersible Pumps
- Sewage Pumps
Operating Limits
- Shaft Diameter : (10 mm to 100 mm) (0.5" to 4.0")
- Pressure : 10 Bar (kg/cm 2)
- Temperature : -20°c to 200°c
- Shaft Speed : Upto 4500 RPM According to Shaft Size & Pressure.
Seal Characteristics
- Single Acting
- Unbalanced
- Independent Of Direction Of Rotation
- Torque Transmission By Elastomer Collar

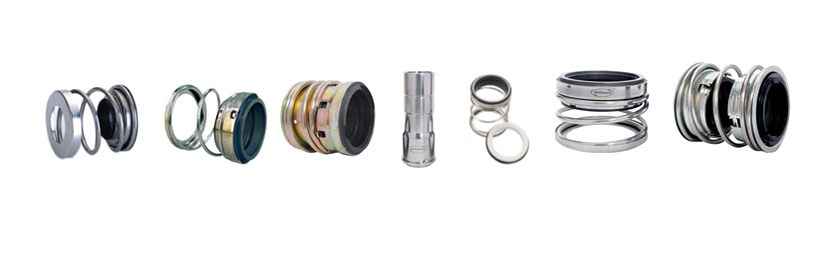

Other Available Rubber Bellow Seal
