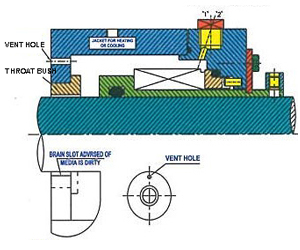

API PLAN 2
- Note :
- Dead Ended Seal Box with no Circulation of flushed Fluid, Water Cooled Stuffing
box Jacket & Throat Bushing Required when specified.
- Connections '1' & '2' Plugged for Possible Future Circulation.

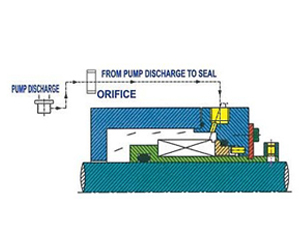

API PLAN 11
- Note :
- Recirculation From Pump Case Through Orifice to Seal.
- Connections '1' For Flushing INLET.

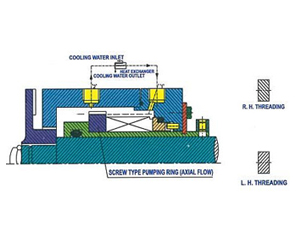

API PLAN 23A
- Note :
- Recirculation From Seal with Pumping Ring Through Cooler and back to Seal.
- Connections '1' & '2' for Circulation INLET & OUTLET.

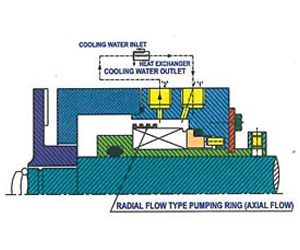

API PLAN 23B
- Note :
- Recirculation From Seal with Pumping Ring Through Cooler and Back to Seal.
- Connections '1' & '2' for Circulation INLET & OUTLET.

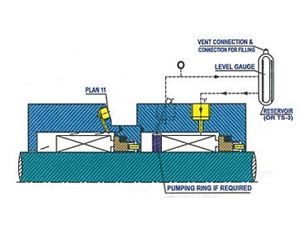

API PLAN 52
- Note :
- Connection '1' & '2' For Flushing INLET & OUTLET for Outboard Seal.
- Non Pressurised Thermosyphon.

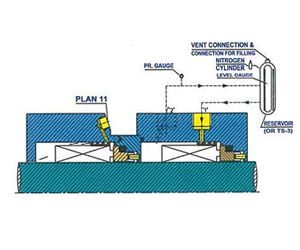

API PLAN 53
- Note :
- Connection '1' & '2' for Flushing INLET & OUTLET for Outboard Seal.
- Pressurised Thermosyphon'
- Radial Flow Type Pumping Ring

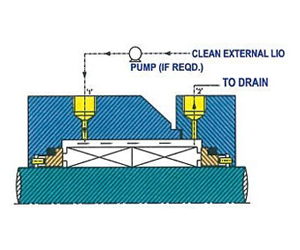

API PLAN 54
- Note :
- Connection '1' & '2' for Flushing INLET & OUTLET

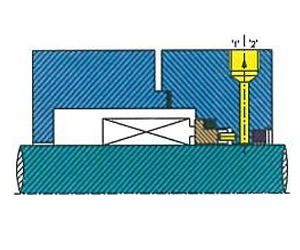

API PLAN 62
- Note :
- Connection '1' & '2' for Quenching INLET & OUTLET.
-
