GLOBE STAR Make U91/U96/BCG Seals of Series are Design a Various Types of Agitator Seals with Bearing or without bearing Arrangement this Seal is Independent of Direction of Rotation, used with Various types of equipment like a Mixer, Agitator Vessel & Glass line Reactors, This Seal have a Two Types of Fitment Top Entry and Bottom Entry & Fitment is Out-side of Equipment to save Atmosphere to Media Fumes and also save Products Quality to mixing another liquid.
This Seal is Assembled in our Workshop and Dynamically Tested, This Seal are Required Lubricant and Quenching System & also require Thermosyphon System to Maintain Temperature & Pressure Inside of seal Quenching & Jacketing liquid, The Bearing Support to Drive Smoothly and Protect the Seal Face to loads of other equipment parts.
Globe Star Standard Style
| Face Material | (Dynamic Ring & Stationary Ring) Carbon, Ceramic (99.5%) Silicon Carbide, Tungsten Carbide, Chrome Cast Steel....etc. |
| Elastomer | (Secondary Seal) Viton, EPDM, Aflas, PTFE, GFT, TCV & FEP, Kalrez. |
| Hardware | SS-316, SS-304, Hast alloy-C, Monel, Alloy-20 |
Application :
- General Chemicals and Its Vapours
- Food Products
- Pharmaceutical Products
- Light Hydrocarbons & Its Vapours
- Petrochemicals & Its Vapours
Operating Limits :
- Shaft Diameter :- 25mm to 200mm (1" to 7.875")
- Pressure :- Vacuum 35 Bar (Kg/cm²)
- Temperature :- 60°C to 260°C
- Shaft Speed :- up to 2000 rpm According to shaft Size & Pressure.
Seal Characteristics :
- Unbalanced
- Cartridge Unit
- Independent of Direction of Rotation
- Operated with Pressurised Buffer Fluid
- Single & Double Acting

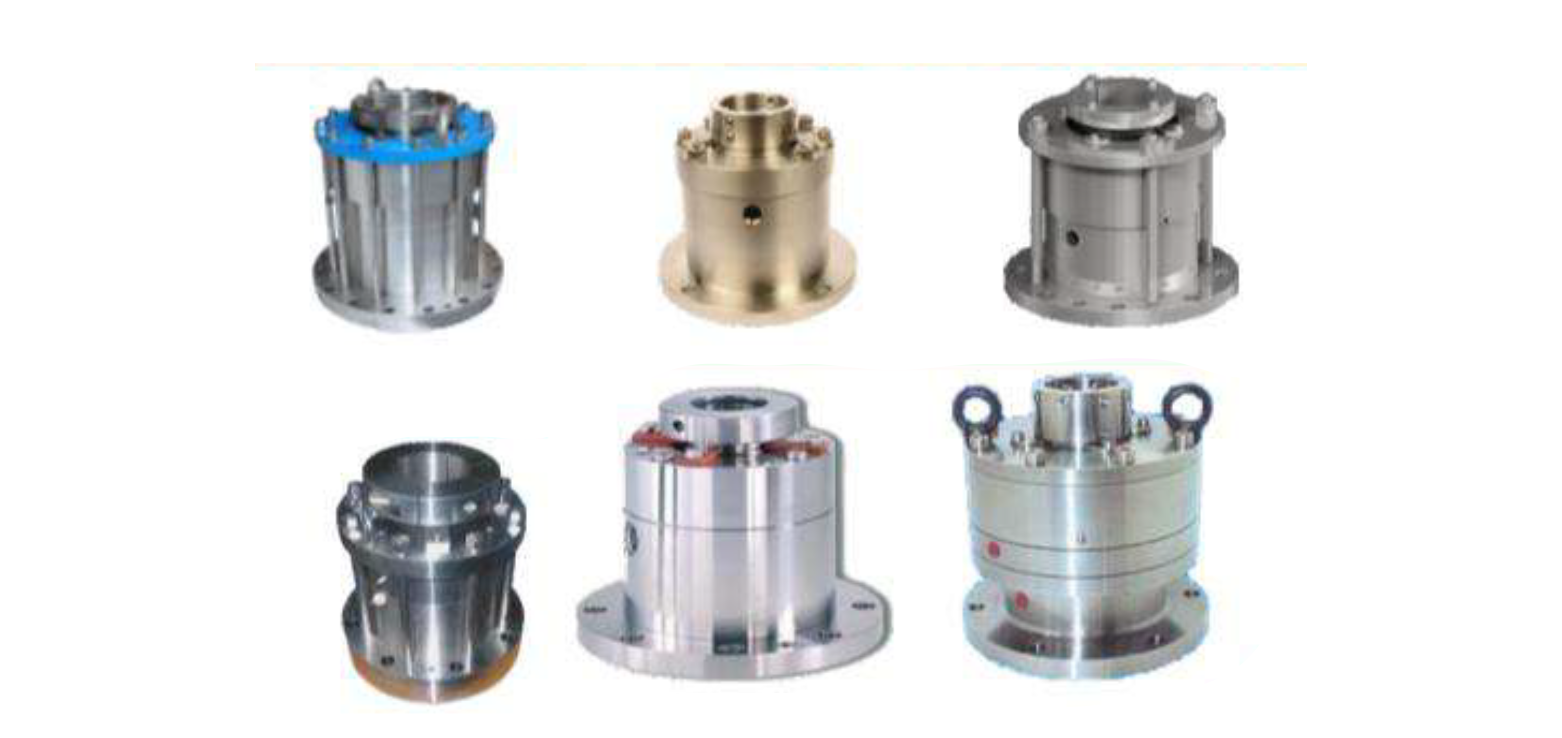

Other Available Unbalance Agitator Seal
